Appareillage LV

26 juin 2026Produit basse tension 9000

Certifications disponibles CE / UL La disponibilité dépend du modèle et de la configuration.

Présentation générale

LV Switchgear, also known as UL 1558 Low Voltage Switchgear, is a key low-voltage power distribution product used for receiving, distributing, controlling, and protecting electrical energy in low-voltage systems. It is commonly installed on the low-voltage side of transformers and serves as the primary distribution equipment for downstream switchboards, panelboards, motor control systems, lighting panels, power equipment, HVAC systems, pumps, and other electrical loads.

Avantages du produit

Designed for High-Reliability Low-Voltage DistributionLV Switchgear is suitable for primary low-voltage power distribution systems where reliability and safety are critical.

UL 1558 and ANSI C37.20.1 Oriented DesignThe switchgear can be designed according to UL 1558 and ANSI C37.

Withdrawable Air Circuit Breaker ConfigurationThe product can be equipped with UL1066 low-voltage air circuit breakers.

Strong Metal-Enclosed Frame StructureThe switchgear adopts a rigid metal-enclosed frame structure.

Caractéristiques techniques types

Standard Reference	UL 1558, ANSI C37.20.1
Circuit Breaker Type	UL1066 Air Circuit Breaker, ACB
Breaker Installation	Withdrawable type available
Courant nominal	Project-based configuration; high-current busbar options available
Short-Circuit / Bus Withstand	Up to 100kA available according to project design
Installation	Indoor electrical room, power distribution center, substation, industrial facility

Configuration type uniquement. Les caractéristiques techniques définitives sont confirmées en fonction des exigences du projet.

Applications

LV Switchgear / UL 1558 Low Voltage Switchgear is widely used in low-voltage power distribution systems that require high reliability, high current capacity, and safe operation. It is typically installed after a transformer and acts as the main low-voltage distribution center for electrical loads.

LAST : NDB1LE-100SUIVANT : LV Switchboard

Recommandations connexes

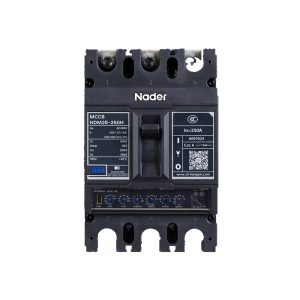

NDM2E-250
2023年5月29日 1709
1. Applicable Scope and Purpose of Circuit Breaker The NDM2E-250 series of electronic molded case circuit breakers (hereinafter referred to as circuit breakers) apply to infrequent switching of circuits with the AC 50Hz, the working voltage of A...
Voir les détails
NDM2-800
2023年5月29日 1699
1. Applicable Scope and Purpose of Circuit Breaker The NDM2-800 molded case circuit breaker (hereinafter referred to as circuit breaker) applies to infrequent switching of circuits with the AC 50Hz, the working voltage of AC690V and working curr...
Voir les détails

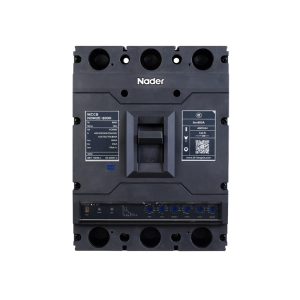

NDM2E-800(M,H)
