Circuit Breaker for Equipment, Oil damping product NDB3-50 J4 2P, Industrial Automatic Control

2023年9月26日Produit basse tension 20540

Certifications disponibles UL La disponibilité dépend du modèle et de la configuration.

Présentation générale

NDB3-50 is a hydraulic-magnetic circuit breaker for equipment, designed to protect AC and DC control circuits against overload and short circuit. Its modular options support a wide range of equipment and installation requirements.

Circuit Breaker for Equipment, Oil damping product NDB3-50 J4 2P, Industrial Automatic Control

Avantages du produit

Hydraulic-Magnetic TripStable magnetic-hydraulic operation is less affected by ambient temperature.

Flexible CurvesMultiple AC and DC delay curves support different load characteristics.

Configurable HardwarePole count, mounting, wiring and actuator options can be selected for the application.

Broad CertificationAvailable configurations reference IEC, EN and UL circuit-breaker standards.

Caractéristiques techniques types

Courant nominal	0.5–50 A typical
Tension nominale	DC 80 V; AC 250 / 415 V
Poles	1, 2 or 3
Tripping Type	Hydraulic-magnetic
Mechanical / Electrical Life	10,000 / 6,000 operations
Normes	IEC 60934, EN 60934, UL 1077, UL 489 / 489A

Configuration type uniquement. Les caractéristiques techniques définitives sont confirmées en fonction des exigences du projet.

Applications

Used in industrial automation, telecommunications, UPS equipment, rail, marine, aerospace, elevator-control and mobile-power systems.

LAST : Hydraulic- magnetic circuit breaker, NDB3-30 Z4 1P Circuit Breaker for EquipmentSUIVANT : SVM5H-630H/R MCCB 1 000 V CA

Recommandations connexes

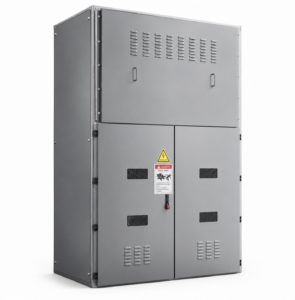

Appareillage LV
26 juin 2026 904
LV Switchgear, also known as UL 1558 Low Voltage Switchgear, is a key low-voltage power distribution product used for receiving, distributing, controlling, and protecting electrical energy in low-voltage systems. It is commonly installed on the l...
Voir les détails
Disjoncteur à boîtier moulé NDM5-1600H
2023年11月27日 1952
The NDM5-1600 series of moulded case circuit breakers (referred to as circuit breakers) have a rated insulation voltage of 1000V and apply to circuits with the AC 50Hz/60Hz, the rated working voltageAC380/400/415V、AC500V、AC660/690V、AC800V，Va...
Voir les détails
NDM2-63
2023年5月29日 1728
1. Applicable Scope and Purpose of Circuit Breaker The NDM2-63 molded case circuit breaker (hereinafter referred to as circuit breaker) applies to infrequent switching of circuits with the AC 50/60Hz, the working voltage of AC415V and working cu...
Voir les détails

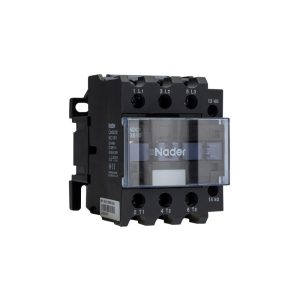

Contacteur NDC1(Z)-38 CA avec bobine CA ou CC
